  • Planetary Project Vehicle

    Abstract

    This project investigates the design of a safe and efficient surface transportation system for four human astronauts on Teegarden’s Star b.

    Due to the planet’s unique atmospheric, gravitational, and geological conditions, surface travel presents significant challenges that differ from those on Earth, including rocky terrain, uncertain atmospheric properties, radiation exposure, and reduced or altered gravity.

    The objective of this project is to design and test a prototype vehicle capable of transporting four astronauts continuously over a distance of 10 km while prioritizing safety, stability, and energy efficiency. To evaluate the feasibility of the design, a simulated testing environment will model crucial differences that only exist on Teegarden’s Star B such as uneven terrain, wind forces, and environmental hazards. The effectiveness of the vehicle will be assessed by its ability to navigate obstacles, protect occupants, and maintain reliable movement under these conditions. This project mainly aims to demonstrate how engineering design can address extraterrestrial mobility challenges through repetitive testing and problem solving.

    Overview/Introduction

    Teegarden’s Star b is one of the closest known exoplanets that may support conditions suitable for life, making it a compelling target for future human exploration. While remote observation can provide valuable data about a planet’s atmosphere and composition, meaningful exploration requires astronauts to physically travel across its surface. Surface mobility is essential for collecting samples, surveying terrain, searching for potential life forms, and establishing communication or infrastructure beyond a landing site.

    Unlike Earth, Teegarden’s Star b is expected to have environmental conditions that pose serious challenges to human travel. Differences in gravity, uncertain atmospheric properties, rugged geological features, and exposure to radiation all create risks that conventional Earth based vehicles are not designed to handle. Without a reliable transportation system, astronauts would be limited in how far they could safely explore, reducing the scientific value of a mission.

    This project addresses that challenge by focusing on the design of a vehicle capable of transporting four human astronauts safely and efficiently over long distances on an unfamiliar planetary surface. By identifying key constraints and simulating extreme conditions through controlled testing, this project aims to explore how engineering design can support human exploration beyond Earth.

    Problem Definition

    The primary problem addressed in this project is how to enable four human astronauts to safely and efficiently travel 10 continuous kilometers across the surface of Teegarden’s Star b. Unlike Earth, this exoplanet presents an unknown and potentially hostile environment, making conventional surface transportation methods unreliable and unsafe. A successful solution must balance astronaut safetyvehicle stability, and energy efficiency while operating under extreme and uncertain conditions.

    One major issue is the planet’s unique environmental conditions, including rocky and uneven terrainsteep elevation changes, and the presence of large boulders and ravines. These geological features increase the risk of vehicle instability, tipping, or mechanical failure. As a result, the transportation system must be capable of maintaining tractionbalance, and structural integrity while navigating unpredictable surfaces.

    Another critical challenge involves atmospheric and gravitational differences. Teegarden’s Star b may possess a thin or unstable atmosphere and a gravitational pull different from Earth’s, both of which can significantly affect vehicle motion and energy consumption. These factors introduce uncertainty in mobility controlbraking, and power efficiency, requiring a design that can adapt to altered physical conditions.

    Astronaut safety is also a central concern. Potential exposure to radiationextreme temperaturesdust or debris, and mechanical impact poses serious risks to human occupants. Therefore, the vehicle must incorporate protective materialsshock absorption, and shielding mechanisms to minimize harm during travel.

    Finally, the issue of efficiency and reliability must be addressed. The vehicle is required to complete the 10 km distance using limited energy resources while remaining operational throughout the journey.

    Vehicle Design Concept

    To address the challenges identified in the problem definition, this project proposes a hybrid planetary rover designed to transport four human astronauts safely and efficiently across the surface of Teegarden’s Star b. The vehicle concept prioritizes stability, adaptability, and occupant protection while maintaining efficient movement over long distances and uneven terrain.

    The vehicle is designed with a low profile, preferably reinforced body structure to reduce the risk of tipping when navigating rocky terrain, steep inclines, and uneven surfaces. A wider base and evenly distributed mass help improve balance and traction, which are critical for maintaining control under altered gravitational conditions. The body panels are shaped to deflect debris and reduce direct impact from environmental hazards.

    For mobility, the vehicle incorporates a wheel based movement system supported by deployable articulated legs. The wheels allow for energy efficient travel across relatively flat terrain, while the legs can be deployed to overcome large obstacles, boulders, or elevation changes that wheels alone may not handle effectively. This hybrid approach increases the vehicle’s versatility and reduces the likelihood of becoming immobilized.

    Energy efficiency is addressed through the use of a compact electric power system designed to support continuous operation over the required 10 km distance. The vehicle minimizes unnecessary mass while maintaining structural strength, allowing energy to be used primarily for locomotion and stability control rather than overcoming excess weight.

    Overall, this vehicle design concept combines efficient rolling mobility with adaptive obstacle navigation and protective structural features. By integrating these elements into a single system, the design aims to meet the core project objective: enabling safe, reliable, and efficient human surface exploration on an unfamiliar extraterrestrial planet.

    Design Process + Decision Making (Define — Ideate — Prototype)

    The design process for this project followed an iterative approach rooted in the Define Stage of the engineering design cycle. Initially, the problem of surface transportation on Teegarden’s Star b was framed in broad terms, focusing primarily on safety and efficiency. Early “How might we” questions explored general ideas of astronaut mobility but lacked specific parameters such as distance, environmental constraints, and measurable success criteria.

    Through structured feedback and revision, the problem definition evolved to become more precise and testable. Key improvements included defining a continuous travel distance of 10 kilometers, identifying specific environmental challenges such as rocky terrain, altered gravity, and uncertain atmospheric conditions, and explicitly linking these constraints to safety and efficiency requirements. This refinement ensured that the problem was not only clearly understood but also capable of being evaluated through controlled testing.

    As the problem became more clearly defined, the team began brainstorming potential vehicle solutions. Early concepts included traditional wheeled rovers, leg based walking systems, and hybrid designs. Purely wheeled vehicles were recognized as energy efficient but limited in their ability to overcome large obstacles, while leg based systems offered greater adaptability but increased mechanical complexity and energy consumption. Based on these ideas, a hybrid mobility concept was selected, combining wheels for efficient travel with deployable legs to assist in navigating uneven terrain and elevation changes.

    Design decisions were further guided by identified constraints. The need for astronaut protection influenced the choice of enclosed body structures and layered materials capable of simulating radiation shielding and impact resistance. The requirement for energy efficiency led to a focus on lightweight materials and electric motor systems. Additionally, the necessity of testing in a classroom or laboratory environment shaped the scale of the prototype and the selection of materials that could safely simulate extraterrestrial conditions.

    Overall, the design process emphasized clarity, adaptability, and testability. By refining the problem statement, identifying realistic constraints, and evaluating multiple design approaches, the project established a strong foundation for prototype construction, testing, and iterative improvement. This structured decision making process ensured that the final design concept directly addressed the challenges of human surface exploration on an unfamiliar exoplanet (namely Teegarden’s Star B).

    Testing Results and Efficiency

    To analyze the electrical efficiency of the vehicle, we compared the voltage supplied by the batteries to the voltage effectively delivered to the motors during testing. Each alkaline AA battery provides approximately 1.5 V. Since four batteries were used in series, the total input voltage to the system is:

    Equation 1:

    equation


    equation

    During testing, the measured voltage delivered to each motor fluctuated between 0.6 V and 0.9 V. To account for this variation, the average motor voltage is calculated:

    Equation 2:

    equation


    equation

    Because the vehicle uses four motors operating simultaneously, the total effective output voltage delivered to the motors is:

    Equation 3:

    equation


    equation

    Energy efficiency is defined as the ratio of useful electrical output to the total electrical input. This relationship is expressed as:

    Equation 4:

    equation

    Substituting the calculated values:

    Equation 5:

    equation


    equation

    This calculation shows that only 50% of the electrical energy supplied by the batteries was effectively delivered to the motors. The remaining energy was lost within the system. These losses can be attributed to internal resistance in the batteries, heat generated within the motors, resistance in wires and connectors, and inefficiencies caused by complex or unstable wiring.


    Videos of First Test

    Videos of Second Test

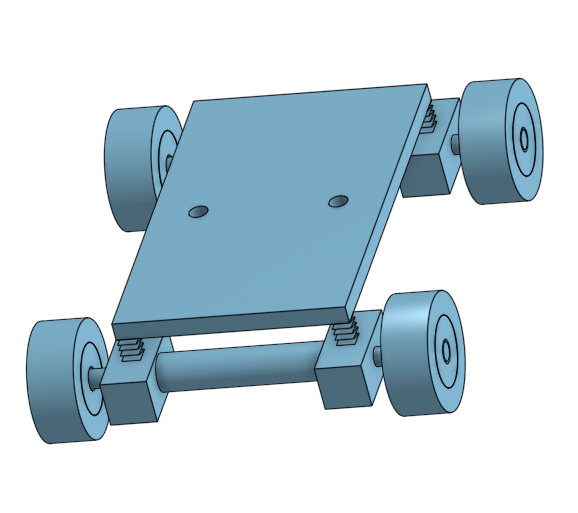

    CAD Design

    Vernier Analysis

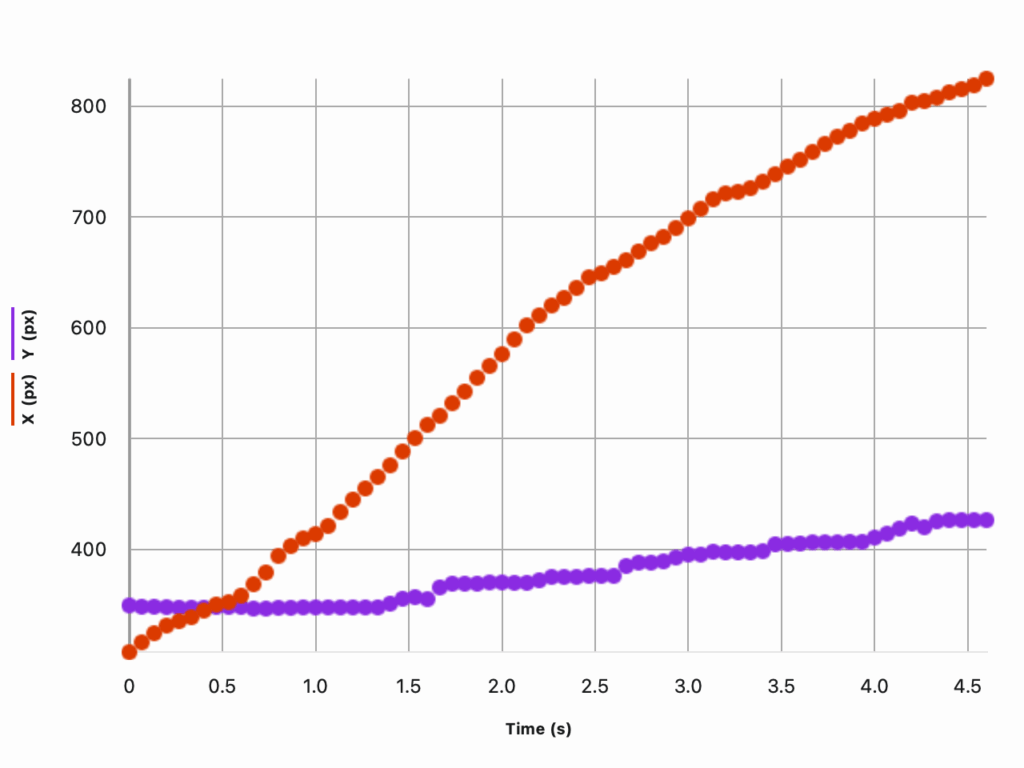

    The Vernier Graph Analysis shows the position of the vehicle over time in both the x-direction (horizontal movement) and y-direction (vertical movement) during the first test. The x-position increases steadily from approximately 320 px to over 820 px within about 4.5 seconds, indicating that the vehicle was able to move forward consistently across the test surface. This suggests that the drive system was functional and capable of producing forward motion on relatively flat terrain.

    In contrast, the y-position shows only a small overall increase, rising gradually from around 350 px to approximately 430 px. This limited change indicates that the vehicle experienced minimal vertical displacement, meaning it struggled to climb or navigate elevation changes. The shallow slope of the y-position curve supports observations from the physical test, where the vehicle was unable to travel over larger clay “mountains” or steep obstacles.

    Evaluation

    The testing phase of this project played a critical role in revealing both the strengths and limitations of the vehicle design. During the initial test, the vehicle successfully demonstrated forward motion on flat terrain, confirming that the basic drive system and power supply were functional. However, the test also exposed several significant issues that directly affected performance and reliability. One major problem was inconsistent steering, as one of the front wheels sporadically turned to the left, causing instability and inefficient movement. Additionally, the vehicle lacked sufficient torque and traction to overcome large clay based obstacles, preventing it from traversing steep or uneven terrain.

    To address the lack of terrain adaptability, additional circuits were constructed and deployable legs were designed to help distribute weight and assist with climbing obstacles. This approach demonstrated creative problem-solving and a willingness to modify the original design in response to test data. However, during the final test, the added complexity introduced new challenges. Electrical integration issues prevented the vehicle from moving, despite a measured voltage of approximately 0.99 V, indicating that power was present but not being effectively delivered to the motors.

    BOM

    Bill of Materials (BOM)

    CategoryComponent / MaterialQuantityPurpose / Justification
    StructuralFoam board3 sheetsUsed for the main chassis due to its lightweight nature and ease of cutting and shaping.
    StructuralWooden dowels6Provided structural reinforcement and axle support for wheels and legs.
    StructuralHDPE plastic sheet1Used to simulate durable outer plating and improve rigidity.
    MobilityRubber wheels4Allowed ground traction and forward motion on flat terrain.
    MobilityRubber treads2 stripsImproved grip on uneven and sandy surfaces.
    MobilityCardboard (terrain testing)Multiple piecesUsed to simulate uneven terrain and elevation changes.
    ElectronicsDC motors2Converted electrical energy into mechanical motion for propulsion.
    ElectronicsMotor driver module1Controlled motor direction and speed.
    ElectronicsBattery pack (7.4 V)1Primary power source for the vehicle.
    ElectronicsBattery holder1Secured the battery and ensured stable electrical connections.
    ElectronicsHC-05 Bluetooth module1Enabled wireless communication for remote control.
    ElectronicsArduino microcontroller1Acted as the control unit for motor operation and communication.
    WiringJumper wiresMultipleConnected electrical components and circuits.
    Testing & SimulationClayMultiple blocksSimulated large “mountains” and high-resistance terrain.
    Testing & SimulationKinetic sand1 traySimulated loose planetary soil conditions.
    Testing & SimulationFoam rocksSeveralSimulated rocky obstacles.
    AssemblyHot glueSeveral sticksUsed to assemble structural components quickly.
    AssemblyTape1 rollTemporary mounting and reinforcement during testing.

    AI Transparency Statement

    Artificial intelligence was used in a limited and as supportive use during this project. Specifically, AI tools were used to assist in creating organized charts for the Bill of Materials and to help refine the structure and clarity of written sections. All ideas, calculations, testing results, analysis, and design decisions were developed by the us. AI was not used to generate experimental data, conduct testing, or make design choices.

  • Planetary Project

    Introduction

    I chose Teegarden’s Star b because it’s one of the closest similar Earth mass exoplanets we’ve found only situated about 12.5 lightyears away, and its size and energy intake makes it one of the more realistic places where liquid water could exist. But choosing a “potentially habitable planet” is only the beginning. If we were ever to send people there, the environment around the Planet would affect our every decision. Its radiation, stellar activity, and orbital conditions all affect how a vehicle must be designed and protected. That’s why we looked at real spacecraft systems and shielding strategies: understanding how current spaceships or rovers survive harsh conditions helps me imagine a vehicle that could actually keep its occupants safe on a journey this long.

    Opportunities

    Teegarden’s Star b provides opportunities due to its Earth like mass, which means gravity could feel familiar and manageable for human life. Because it receives a similar amount of starlight to Earth, the planet may be able to maintain liquid water and a temperate climate if it has a stable atmosphere. Its close orbit around a faint star could also allow for efficient power generation using infrared optimized solar technology. Overall, it presents a promising environment for scientific exploration and potential colonization.

    Challenges

    One major challenge is that the planet orbits extremely close to its small star, making tidal locking highly likely meaning one side may be in permanent daylight while the other remains dark. This could create extreme temperature differences and atmospheric instability. Red dwarf stars also emit strong solar flares and radiation that could strip away a planet’s atmosphere. Because the planet does not transit its star, we still do not know its radius, atmosphere, or true surface conditions, adding large uncertainties to any colonization plans.

    Vehicle Design

    Designing a vehicle for a journey to Teegarden’s Star b means preparing for an environment harsher than anything experienced on Earth. The ship isn’t just used for transportation, it is the only barrier between the crew and constant radiation, freezing temperatures, micrometeoroids, and complete isolation.

    Radiation is one of the biggest threats in deep space. Without Earth’s magnetic field or atmosphere, the crew would be exposed every day, so the vehicle needs several layers of protection. Hydrogen rich materials like water or polyethylene can be placed around the living areas to block high energy particles. Using a layered combination of lighter and heavier materials helps reduce different kinds of radiation without creating harmful secondary effects. The ship would also need a small, heavily protected “storm shelter” where the crew could stay during bursts of radiation from the star. Even basic elements of the ship, like water tanks or fuel storage, can be arranged around the cabin to add extra shielding without adding much mass.

    The structure of the vehicle also has to survive meteoroid impacts and major temperature swings. Materials such as aluminum lithium alloys, carbon composites, and multi layer insulation help the outside of the ship stay both strong and lightweight.

    Power and reliability are another major challenge. Because a mission like this would last decades, all systems need to be redundant, modular, and able to withstand years of radiation exposure. This is one reason I looked at the computers used on missions like the Mars rovers. They show how engineers design hardware that keeps working in extreme conditions and gave me ideas about how similar systems could be protected on our vehicle.

    How?

    Scientists discovered Teegarden’s Star b using the radial velocity method , where precision spectrographs like CARMENES detect tiny wobbles in the star caused by orbiting planets. Follow-up observations from instruments such as ESPRESSO, MAROON-X, and TESS refined the planet’s orbital period (4.9 days), minimum mass (approx 1.1 Earth masses), and its possible position in the habitable zone. Climate models and computer simulations have explored whether it could support liquid water. The main scientific reports detailing this are Zechmeister (2019), whom first announced the discovery, and Dreizler (2024), whom revisited the system with newer data.

    Conclusion

    Teegarden’s Star b stands out as a realistic but challenging candidate for future exploration or settlement. Its Earth like mass and position near the habitable zone offer promising opportunities, yet its close orbit, possible tidal locking, and uncertain atmosphere require advanced engineering solutions. The vehicle design formulas covering radiation shielding, power generation, and torque requirements highlight at how scientific principles guide every part of mission planning. Although many conditions remain unknown, the research methods used to study the planet provide increasingly precise data, allowing us to design smarter, safer systems for operations on a world so different from our own.

    References

    Boukrouche, R., Caballero, R., & Lewis, N. T. (2025). Near the runaway: The climate and habitability of Teegarden’s Star b. The Astrophysical Journal Letters, 993(1), L19–L19. https://doi.org/10.3847/2041-8213/ae122a

    vWard, C. (2024, August 22). Where we would send the Ark: The best exoplanets within 25 light-years. SYFYhttps://www.syfy.com/syfy-wire/the-best-exoplanets-within-25-light-years

    Wikipedia Contributors. (2022, November 13). Teegarden’s Star b. Wikipedia; Wikimedia Foundationhttps://en.wikipedia.org/wiki/Teegarden%27s_Star_b

    Zechmeister, M., Dreizler, S., Ribas, I., Reiners, A., Caballero, J. A., Bauer, F. F., Béjar, V. J. S., González-Cuesta, L., Herrero, E., Lalitha, S., López-González, M. J., Luque, R., Morales, J. C., Pallé, E., Rodríguez, E., Rodríguez López, C., Tal-Or, L., Anglada-Escudé, G., Quirrenbach, A., & Amado, P. J. (2019). The CARMENES search for exoplanets around M dwarfs. Astronomy & Astrophysics, 627, A49. https://doi.org/10.1051/0004-6361/201935460

  • Robotics

    Introduction

    In this robotics project, I built a system that uses a servo motor and LEDs controlled by potentiometers through Arduino and Fusion. The goal was to make the motor move and lights react based on the input values from the sensors. The code reads and maps the analog signals from the potentiometers, then decides how the lights and motor should respond. I learned how coding connects with physical movement, how to use the Servo library, and how to debug and adjust the program to make everything work smoothly. This project helped me understand how sensors and code can work together to create smart, moving systems.

    Design Explanation + Rules

    Goal
    Your task is to stop the fan (servo motor) by correctly adjusting two knobs (potentiometers) in the right sequence.

    Instructions

    Final stage
    Once all stages are completed correctly, the Serial Monitor will display Open and Turn
    This means the fan is unlocked and you have successfully completed the puzzle.

    Start the game
    When the circuit is powered, the LEDs will blink to show it is ready.

    Identify the knobs
    There are two knobs: left (A0) and right (A1).
    You will need to turn these knobs to the correct positions in each step.

    Observe the LEDs
    There are three LEDs (pins 9, 10, and 11).
    The LEDs will light up or flash to indicate progress or mistakes.

    Adjust the knobs
    Turn the knobs slowly and carefully to find the correct position.
    The first correct combination will make certain LEDs turn on.

    Advance through the stages
    Each stage has a new combination.
    Correct positions will change the LED patterns.
    Move to the next stage once you see the correct LED signals.

    Avoid traps
    If the right knob (A1) is turned into the wrong range at the final stage, the system will reset and display a trap message.
    You will need to start from the beginning if this happens.

    AI Discussions + Inspirations

    I have not used any sort of AI too much or at all for this project as it was not really that big of a help for me. I did take inspiration from people who are experts in Arduino and Tinkercad and from the extensive gallery available on TinkerCAD.

    Conclusion

    Through this robotics project in Fusion, I successfully developed and tested a moving motor system using code that controlled its movement and direction. Throughout the process, I learned how to decipher, troubleshoot, and optimize motor control code, as well as how small changes in programming can significantly affect the robot’s performance. This project helped me better understand the connection between coding and mechanical motion, strengthened my problem-solving skills, and gave me hands on experience with robotics design and programming integration. Overall, it was a valuable learning experience that deepened both my understanding in Coding in C++, and also my feel for more hardware related objects such as building the actual circuits and motors.

    BOM:

    Detailed Explanation of My Code

    This device is like an electronic puzzle lock that reacts to two knobs, three LEDs, and a servo motor.

    When you turn it on, the servo resets to 0 degrees and the LEDs flash a few times as a startup sequence. This shows that the system is awake and ready.

    The two knobs are read continuously. Their positions are converted into a range that the Arduino understands so it can tell what positions are correct. Small messages appear in the serial monitor to show the knob positions.

    Each knob has a corresponding LED. If a knob is turned to the correct range, its LED lights up. If not, the LED stays off. When both knobs are in the right positions at the same time, the device moves to the next stage.

    The device has five stages, each with a different visual or movement effect. In the first stage, the LEDs blink with a soft signal to show that this step is correct. In the second stage, the LEDs blink faster to indicate progress. The third stage has another blink sequence to prepare for the main action. In the fourth stage, the LEDs alternate in a pattern, like a small light show. In the fifth and final stage, the servo reacts to the knob and the device can be fully “unlocked.”

    There is also a trap check. If the wrong combination is tried at the final stage, the device resets itself. The LEDs turn off and the servo goes back to 0 degrees. This makes sure the game is not luck based.

    In the last stage, turning one knob moves the servo as if you were turning a real lock mechanism. This makes the system interactive because your movements directly control the device.

    1. Variable Declarations
      These lines create all the variables the code will use later:

    int potD = 0;
    int potE = 0;
    int led1 = 0;
    int led2 = 0;
    int led3 = 0;
    int i = 0;
    int PDsup = 0;
    int PDinf = 0;
    int PEsup = 0;
    int PEinf = 0;
    int j = 0;

    Each variable starts at 0. The word “int” means it stores a whole number. I use these variables to keep track of sensor readings, LED states, and any values I calculate while the program runs.

    1. Servo Library
      This line tells the Arduino to load the Servo library, which allows the code to control servo motors. Without this, the servo commands wouldn’t work.

    void loop()
    After setup is done, the loop() function repeats over and over for as long as the Arduino is on. This is where the main logic of the project happens, like reading sensors, updating LEDs, and moving servos. Anything inside loop() runs continuously.

    void setup()
    This function runs one time when the Arduino starts up. Inside setup, I usually set pin modes, attach servos, and start serial communication.

    The loop starts by reading the two knobs (A0 and A1). Their 0–1023 values get mapped into a range controlled by j and k, which change as the stages advance.

    The program checks whether each knob is inside its current “target” range. If a knob is inside the correct interval (potD in PDinf–PDsup or potE in PEinf–PEsup), its corresponding LED state becomes 1. Otherwise it becomes 0. This is how the system knows if each knob is dialed correctly.

    When both knobs hit their correct ranges at the same time, the system moves to the next stage. Each stage is represented by led3. Stage numbers go 1 → 2 → 3 → 4 → 5.

    Stage transitions:

    • Stage 1 to Stage 2: Both LEDs are 1. The program shrinks the knob range to 0–7, sets led 3 to 2, turns off all LEDs, and plays a fade-in/fade-out effect on LED pin 10.
    • Stage 2 to Stage 3: Both LEDs are 2. The program sets new ranges (left knob 0–7, right knob around 173–180), switches led3 to 3, and blinks LED pins 9 and 11 five times.
    • Stage 3 to Stage 4: Both LEDs are 3. LED pin 10 blinks ten times, led3 becomes 4, and the knob ranges change again (left ~153–160, right ~23–30).
    • Stage 4 to Stage 5: Both LEDs are 4. The program switches led 3 to 5, updates ranges again (left ~85–93, right 0–7), and plays an alternating light pattern between LED pins 9, 10, and 11.

    Final stage (led3 = 5): When both LEDs are 5, the system unlocks. ACESSO becomes HIGH, the knob mapping range becomes 0–90 for the servo, and potD starts controlling the servo. The program prints “OPEN” and asks you to turn the knob.

    However, the other knob (potE) becomes a trap during this stage. If potE enters certain forbidden zones (0–40 or 50–89), the program prints “IT’S A TRAP!”, resets the servo to 0, resets the knob ranges, resets led3 to 1, turns off all LEDs, and the entire puzzle restarts from the beginning.

    Finally, there is a short 10 ms delay to prevent the loop from running too fast.

    Inside loop(), the Arduino constantly reads the two knobs and checks whether each one is turned into the correct range. If a knob is in the right spot, the program marks it as correct; if not, it resets that status. When both knobs are correct at the same time, the system moves to the next stage. Each stage tightens the knob ranges and displays a different LED pattern to show progress.

    As the stages advance, the target ranges get narrower and the LED effects change. After passing through all four stages, the system reaches the final one, where turning one knob controls the servo. The other knob becomes a trap, if you move it into certain positions, the whole system resets and you have to start over.

    Circuit Diagram:

  • CAD Assignment

    Introduction

    For my CAD project, I decided to create a design of a robot arm in Onshape. As a beginner, I was new to the world of computer aided design, so I relied on AI tools such as Notebook LM and ChatGPT to guide me and help me learn the basic functions and techniques. By using these tools, I was able to explore sketching, extruding, and shaping 3D objects, gradually building my skills while completing the project. This experience not only introduced me to the fundamentals of CAD but also allowed me to see how AI can support learning and problem-solving in design.

    As Thomas Edison once said, “Genius is one percent inspiration and ninety-nine percent perspiration,” and this project showed me how effort combined with guidance can lead to meaningful and powerful results.

    Reflections

    Working on this CAD project in Onshape was a really awesome experience for me. At the start, I was a complete beginner and didn’t know where to begin, but by using AI and tutorials, it really helped me figure out the basics step by step. I learned not just how to use the tools, but also how to think like a designer, planning, testing ideas, and improving my work along the way. It was exciting to see my sketches turn into real 3D models, and even more satisfying to solve problems I didn’t know I could. Overall, this project taught me patience, creativity, and the value of learning through trial and error, and it definitely makes me feel more confident about exploring CAD in the future.

    Description of my Design

    For my CAD project, I designed a robot arm using Onshape. I started by sketching the main parts of the arm, such as the base, joints, and segments, making sure all the dimensions were accurate. Then, I used the extrude tool to turn those sketches into 3D parts. Once all the pieces were finished, I assembled them using different mates such as the revolute mate (which makes the different pieces stick together) to make sure the arm could move realistically.

    After completing the assembly, I created a detailed mechanical drawing that included important dimensions and a Bill of Materials listing all the parts. This project helped me understand how sketching, extruding, and assembling come together to create a working design, and it showed me how important precision and planning are in mechanical design.

    To add on to my “Ai Discussions” panel, I have used more tutorials on platforms such as YouTube as I found those easier to comprehend and to follow along with in comparison to asking NotebookLM or other AI websites. A great example of this would be when I was confused about where the extrude button was, and Gemini’s Descriptions were not as useful as the immersive tutorials online.

  • Coding Assignment

    Introduction

    “Programs must be written for people to read, and only incidentally for machines to execute.” — Harold Abelson

    Welcome to my first coding project! This project signifies the beginning of my journey into programming and computational knowledge with the language of Python. As someone new to Python coding, I am excited to explore the immense potential of Python, a versatile and beginner friendly language. I will use these skills to solve problems and create meaningful programs.

    Throughout this project, I aim to develop my understanding of basic programming concepts such as variables, loops, conditionals, and functions, while also nurturing curiosity, persistence, and logical thinking. I hope that this piece of work not only demonstrates my learning progress but also reflects my passion for technology and STEM in general.

    As Steve Jobs once said, “Everybody in this country should learn to program a computer… because it teaches you how to think.” With that in mind, this project is my first step toward thinking like a programmer, embracing challenges, and building skills that will last my lifetime.

    Explanation of Code

    1. Modules

    • import random → lets the game choose random numbers for attacks, healing, and enemy selection.
    • import time → allows the game to pause for a short time to print text slowly and make it dramatic.

    2. Functions

    slow_print(text, delay=0.03)

    • Prints text character by character instead of all at once.
    • text → the message to display.
    • delay → how long to wait between characters (default 0.03 seconds).

    choose_enemy(defeated_enemies)

    • Makes a list of all possible enemies with their name, HP, and attack power.
    • Checks defeated_enemies to see which enemies are still available.
    • Returns a random enemy if there are any left, otherwise returns a Dragon.

    player_attack() / player_special()

    • player_attack() → normal attack, deals 8–15 damage.
    • player_special() → stronger attack, deals 20–30 damage.

    enemy_attack(enemy) / enemy_special(enemy)

    • Damage depends on the enemy’s attack stat.
    • enemy_special() is stronger than enemy_attack().

    3. Player Variables

    player = {

        “name”: input(“Enter your hero’s name: “)

        “hp”: 100

        “level”: 1

        “xp”: 0

        “gold”: 0

        “special_cooldown”: 0

    • name → player’s input
    • hp → player health points. Starts at 100
    • level → starts at 1, increases with XP
    • xp → experience points earned from defeating enemies
    • gold → currency gained from enemies
    • special_cooldown → how many turns until player can use special attack again
    • defeated_enemies = [] → keeps track of which enemies have already been beaten

    4. Main Game Loop

    • Uses while True: to keep the game running until player quits or dies
    • Shows player stats and asks for an action: explore, rest, or quit

    Player Actions

    1. Quit → stops the game.
    2. Rest → heals 10–25 HP (but not over 100) and reduces special cooldown by 1
    3. Explore → chooses an enemy and enters a combat loop

    5. Combat Loop

    • Continues while enemy HP > 0 and player HP > 0
    • Player chooses: attack, special, or run

    Player Choices

    • Attack → normal damage, subtract from enemy HP
    • Special → stronger attack, only if special_cooldown is 0; sets cooldown to 3 turns
    • Run → 50% chance to escape
    • Invalid input → asks again

    Enemy Turn

    • Dragon has a 30% chance to use special attack
    • Otherwise, enemy does normal attack
    • Damage is subtracted from player HP
    • Player’s special cooldown decreases each turn if above 0

    6. After Battle

    • If enemy dies → gain XP and gold
    • If XP ≥ level × 50 → level up, reset HP to 100
    • If Dragon dies → win the game
    • If player HP ≤ 0 → game over

    7. Loops and Conditionals

    • while True: → main game loop
    • while enemy[‘hp’] > 0 and player[‘hp’] > 0: → combat loop
    • if / elif / else → checks player input and enemy actions
    • for char in text: → used in slow_print to print each character

    8. Randomness

    Run chance

    random.randint(a, b) → random integer between a and b

    Used for:

    Player and enemy attacks

    Healing

    Enemy selection

    This is my flowchart that describes how my program runs and works. It also includes parts of my thought process when I initially decided to create this game.

    Explained in Detail

    This Python program is a text-based adventure game that runs entirely in the console. It uses functions and loops to create an interactive battle system.

    The player controls a hero with stats like HP, level, XP, and gold, all stored in the code. You can choose to rest, explore, or quit. Resting increases HP and decreases your special attack cooldown. Exploring triggers a random encounter with an enemy, selected from a list using the random module. Each enemy also has its own dictionary containing its name, HP, and attack power.

    During battle, a while loop does the combat every turn. You can pick from three actions: attack, special, or run. Regular attacks deal random damage using random.randint(), while special attacks are stronger but it requires waiting a few turns before you can reuse it. Enemies also attack each round, and their damage is randomly calculated within a range.

    When an enemy is defeated, you earn random amounts of XP and gold. If your XP exceeds a threshold (which is based on your level), you level up, your HP refills, and the game gets progressively harder. The program keeps track of all defeated enemies, and once you’ve beaten them all, you’ll face the final boss, the Dragon.

    If your HP drops to zero, the game ends with a “Game Over.” Beating the Dragon prints a victory message and ends the main game loop.
